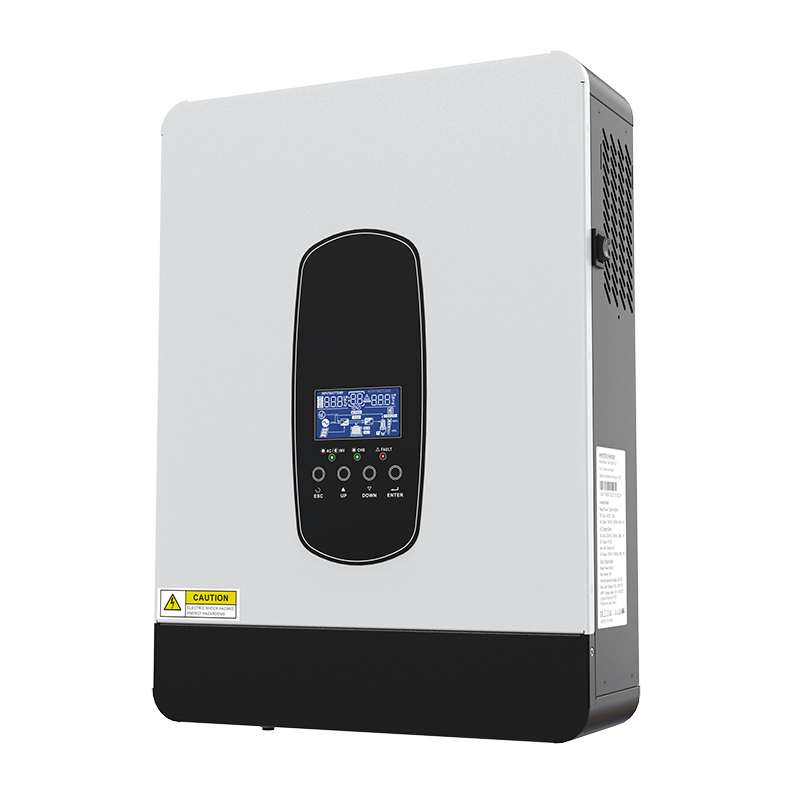

SP 系列太阳能逆变器 2200VA 3200VA

状态:
数量:

产品描述

Features


Pure sine wave inverter

Programmable supply priority for PV , battery or Grid

High PV input voltage range(55~450VDC)

Built-in Max 110A(3.6KW&6.2KW) MPPT solar charge

Compatibe with lithium-ion battery

Support BMS communication with Lithium battery

Smart battery charge design to optimize battery life

Overload,high temperature,inverter output short circuit protection

Cold start function

Intelligent fan speed adjustment

Built-in anti-dusk kit for harsh enviromen(optional)

WIFI&GPRS available for IOS and android


Product Data Sheet


MODEL

SP-2200

SP-3200

SP-4000

SP-7000

Rated Power

2200VA/1800W

3200VA/3000W

4000VA/3600W

7000VA/6200W

INPUT

Voltage

230VAC

Selectable Voltage Range

170-280VAC(for personal computers)

90-280VAC(for home appliances)

Frequency Range

50Hz/60Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt.Mode)

230VAC±5%

Surge power

4400VA

6400VA

8000VA

14000VA

Transfer Time

10ms (for personal computers)

20ms (for home appliances)

Wave form

Pure Sine Wave

BATTERY & AC CHARGER

Battery Voltage

12VDC

24VDC

24VDC

48VDC

Floating Charge Voltage

13.5VDC

27VDC

27VDC

54VDC

Overcharge Protection

15.5VDC

31VDC

31VDC

61VDC

Maximum charge current

60A

80A

SOLAR CHARGER

MAX.PV Array Power

2000W

3000W

5000W

6000W

MPPT Range@ Operating Voltage

55-450VDC

Maximum PV Array Open Circuit Voltage

450VDC

Maximum Charging Current

80A

110A

Maximum Efficiency

98%

PHYSICAL

Dimension.D*W*H(mm)

405*286*98mm

423*290*100mm

423*310*120mm

Net Weight (kgs)

4.5kg

5.0kg

7.0kg

8.0kg

Communication Interface

RS232/RS485(Standard)

GPRS/WIFI(Optional)

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity(No-condensing)

Operating Temperature

-10 to 55

Storage Temperature

-15 to 60
